REAR WHEEL
DL1000A VSTROM 2014 (L4) USA (E03)

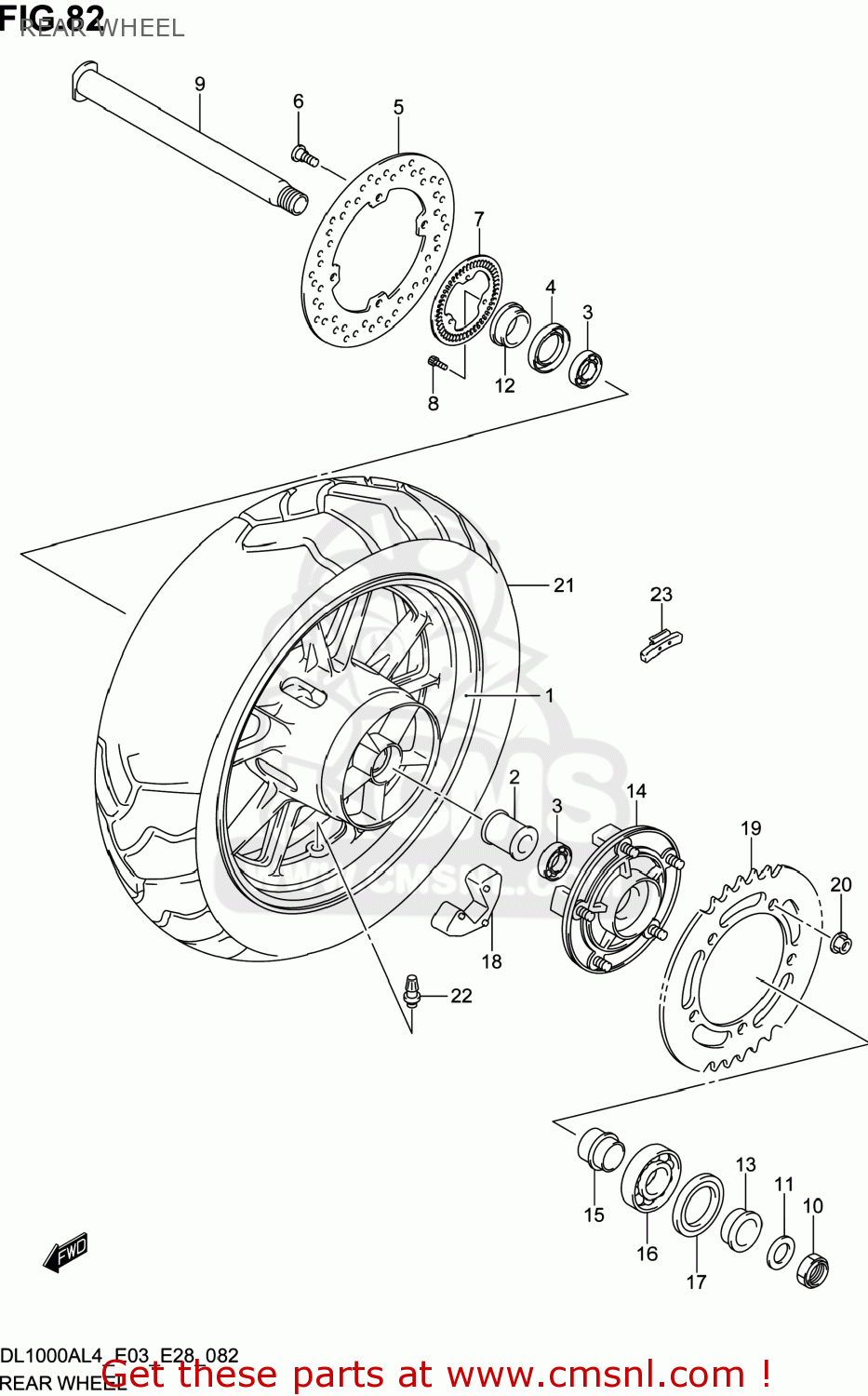

Rear wheel diagram DL1000A VSTROM 2014 (L4) USA (E03)
REAR WHEEL DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411131J00019
ref: 1
WHEEL,RR(17M/CXMT4.00)
€ 618.50
1
6411131J00019
ref: 1
WHEEL,RR(17M/CXMT4.00)
€ 618.50
2
6473149G00
ref: 2
SPACER,RR HUB BEARING
€ 32.00
3
0926228052
ref: 3
BEARING(28X52X12)
€ 24.00
4
0928437001
ref: 4
SEAL,OIL(37X52X8)
€ 9.00
5
6921106G00
ref: 5
DISC,RR BRAKE
€ 121.00
6
0910608160
ref: 6
BOLT(8X21)
€ 3.50
7
6416217G00
ref: 7
RING,SPEED SENSOR RR(50T)
€ 14.00
8
071300512A
ref: 8
BOLT
€ 2.50
9
6471131J00
ref: 9
AXLE,RR
€ 69.50
10
0915925003
ref: 10
NUT
€ 29.00
11
0916025070
ref: 11
WASHER(25.2X42X3.2)
€ 4.50
12
6474135F00
ref: 12
SPACER,RR AXLE,R
€ 9.00
13
6475147H00
ref: 13
SPACER,RR AXLE,L
€ 13.50
14
6461035F30
ref: 14
DRUM,RR SPROCKET
€ 219.00
15
6473335F00
ref: 15
RETAINER,RR SPROCKET DRUM
€ 21.50
16
0926232022
ref: 16
BEARING(32X65X17)
€ 49.00
17
0928539001
ref: 17
SEAL,OIL(39X65X7)
€ 9.00
18
6465135F20
ref: 18
ABSORBER,RR HUB SHOCK
€ 18.50
19
6451135F20
ref: 19
SPROCKET,RR(NT:41-525)
€ 62.50
20
083193110A
ref: 20
NUT
€ 3.00
21
6511031J00
ref: 21
TIRE,REAR
€ 123.00
22
4313024A00
ref: 22
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
23-1
5541122H00
ref: 23-1
BALANCER,WHEEL(10G)
€ 4.50
23-2
5541222H00
ref: 23-2
BALANCER,WHEEL(20G)
€ 5.50
23-3
5541322H00
ref: 23-3
BALANCER,WHEEL(30G)
€ 6.00
