CARRIER (DL1000AL4 E28)

DL1000A VSTROM 2014 (L4) USA (E03)

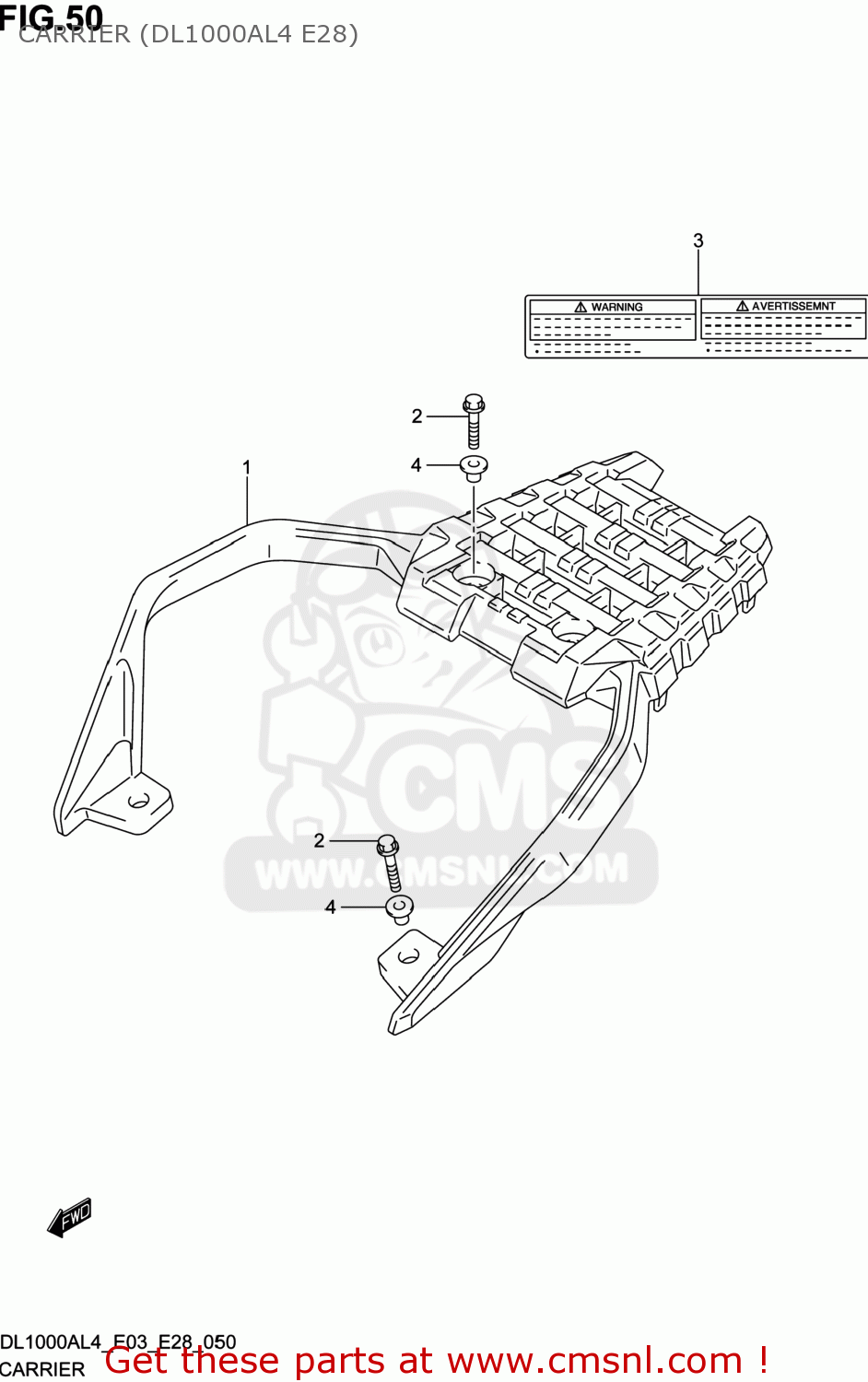

Carrier (dl1000al4 e28) diagram DL1000A VSTROM 2014 (L4) USA (E03)

CARRIER (DL1000AL4 E28) DL1000A VSTROM 2014 (L4) USA (E03)

CARRIER (DL1000AL4 E28) DL1000A VSTROM 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4631131J00YYF
ref: 1

CARRIER,SPORT(SILVER)

€ 131.50

2

0910308512
ref: 2

BOLT(8X35)

€ 2.00

3

6839106G90
ref: 3

LABEL,WARNING LUGGAGE CARRIER

€ 0.00

4

0916908049
ref: 4

WASHER

€ 3.00
