CLUTCH
DL1000A VSTROM 2014 (L4) USA (E03)

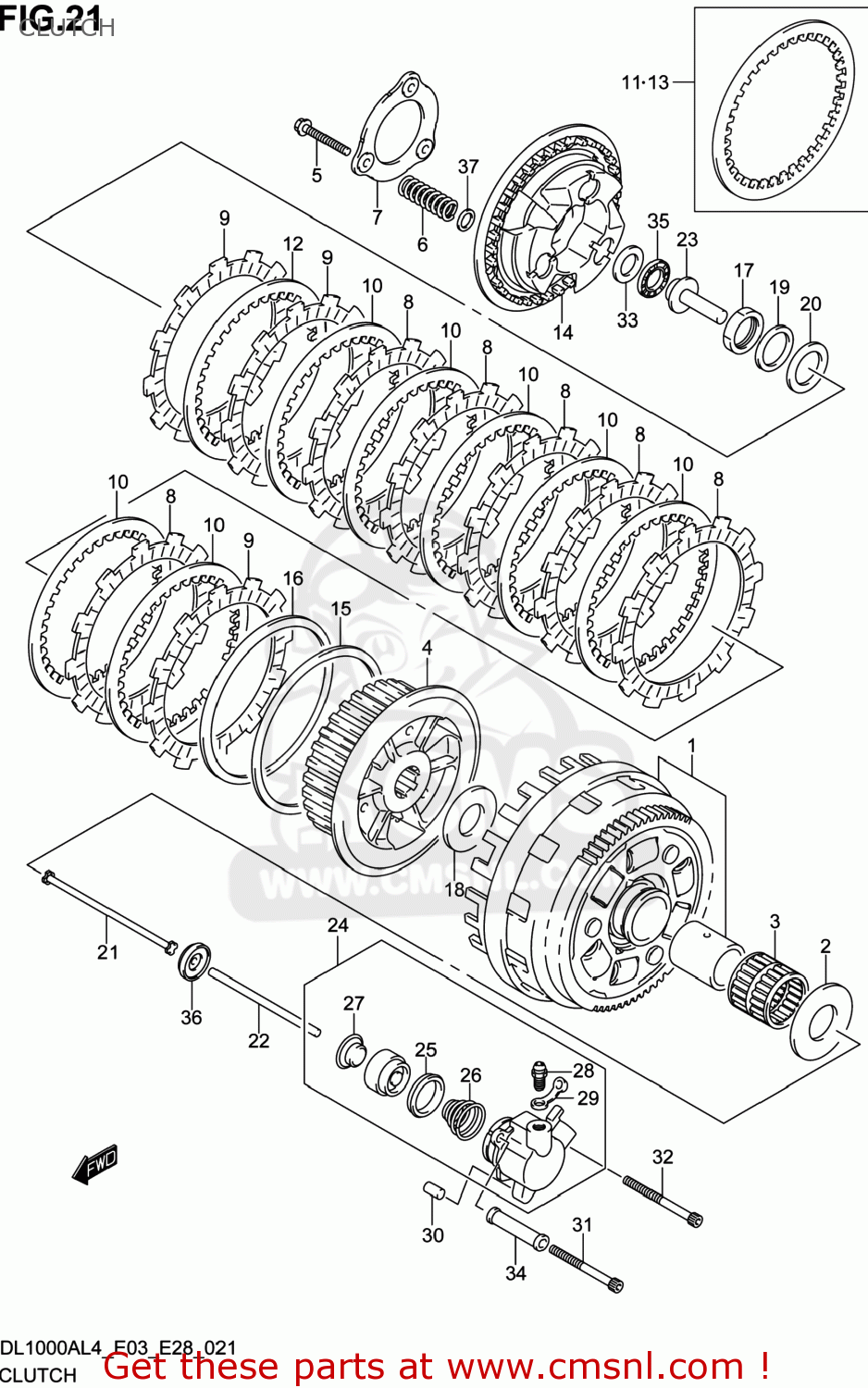

Clutch diagram DL1000A VSTROM 2014 (L4) USA (E03)
CLUTCH DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120031Y10
ref: 1
GEAR ASSY,PRIMARY DRIVEN
€ 392.00
2
0916025074
ref: 2
WASHER(25X52X2.5)
€ 5.00
3
0926335013
ref: 3
BEARING(35X40X39.8)
€ 29.00
4
2141131J00
ref: 4
HUB,CLUTCH SLEEVE
€ 151.00
5
2141231J00
ref: 5
BOLT,CLUTCH SPRING
€ 2.50
6
2141331J00
ref: 6
SPRING,CLUTCH
€ 6.00
7
2141431J00
ref: 7
PLATE,STOPPER
€ 12.50
8
2144131J00
ref: 8
PLATE,CLUTCH DRIVE NO.1 (NAS)
€ 14.00
8
2144131J00
ref: 8
PLATE,CLUTCH DRIVE NO.1 (NAS)
€ 14.00
9
2144231J00
ref: 9
PLATE,CLUTCH DRIVE NO.2 (NAS)
€ 14.00
9
2144231J00
ref: 9
PLATE,CLUTCH DRIVE NO.2 (NAS)
€ 14.00
10
2145124F00
ref: 10
PLATE,CLUTCH DRIVEN NO.1(T:2.0 (NAS)
€ 7.50
11
2145124F10
ref: 11
PLATE,CLUTCH DRIVEN NO.2(T:2.3 (NAS)
€ 7.50
12
2145231J00
ref: 12
PLATE,CLUTCH DRIVEN NO.2 (NAS)
€ 7.00
13
2145131J00
ref: 13
PLATE,CLUTCH DRIVEN NO.3 (NAS)
€ 7.00
14
2146231J00
ref: 14
DISC,CLUTCH PRESSURE
€ 86.50
15
2147124F00
ref: 15
SEAT,WAVE WASHER
€ 12.00
16
2147224F00
ref: 16
WASHER,CLUTCH PLATE WAVE
€ 12.50
17
0915924010
ref: 17
NUT
€ 11.00
18
0916025056
ref: 18
WASHER(25X50X2.5)
€ 9.50
19
0916424008
ref: 19
WASHER
€ 3.00
20
0918125223
ref: 20
SHIM(25X38X1)
€ 3.00
21
2311027A00
ref: 21
ROD,CLUTCH
€ 17.00
22
2311126D00
ref: 22
ROD,CLUTCH PUSH,L
€ 14.00
23
2312131E00
ref: 23
PIECE,CLUTCH PUSH
€ 18.50
24
2316006G02
ref: 24
CYLINDER,CLUTCH RELEASE
€ 92.50
25
2316306B00
ref: 25
CUP
€ 5.50
26
2316405A00
ref: 26
SPRING,CLUTCH CYLINDER
€ 3.50
27
2316606G00
ref: 27
COVER,DUST
€ 14.00
28
5912101A00
ref: 28
BLEEDER
€ 8.50
29
5912201A00
ref: 29
CAP,BLEEDER
€ 4.50
30
0422108149
ref: 30
PIN
€ 2.50
31
071300665A
ref: 31
BOLT
€ 2.50
32
071300670A
ref: 32
BOLT
€ 2.50
33
0916015045
ref: 33
WASHER(15.5X28X1)
€ 4.00
34
2317106G00
ref: 34
SPACER,CL RLSE CYL
€ 6.50
35
0926315003
ref: 35
BEARING(15X28X2)
€ 7.00
36
0928306008
ref: 36
SEAL,OIL(6X34X10.5)
€ 13.00
37
2141531J00
ref: 37
SEAT,CLUTCH SPRING
€ 10.50
