HANDLE SWITCH

DL1000A VSTROM 2014 (L4) USA (E03)

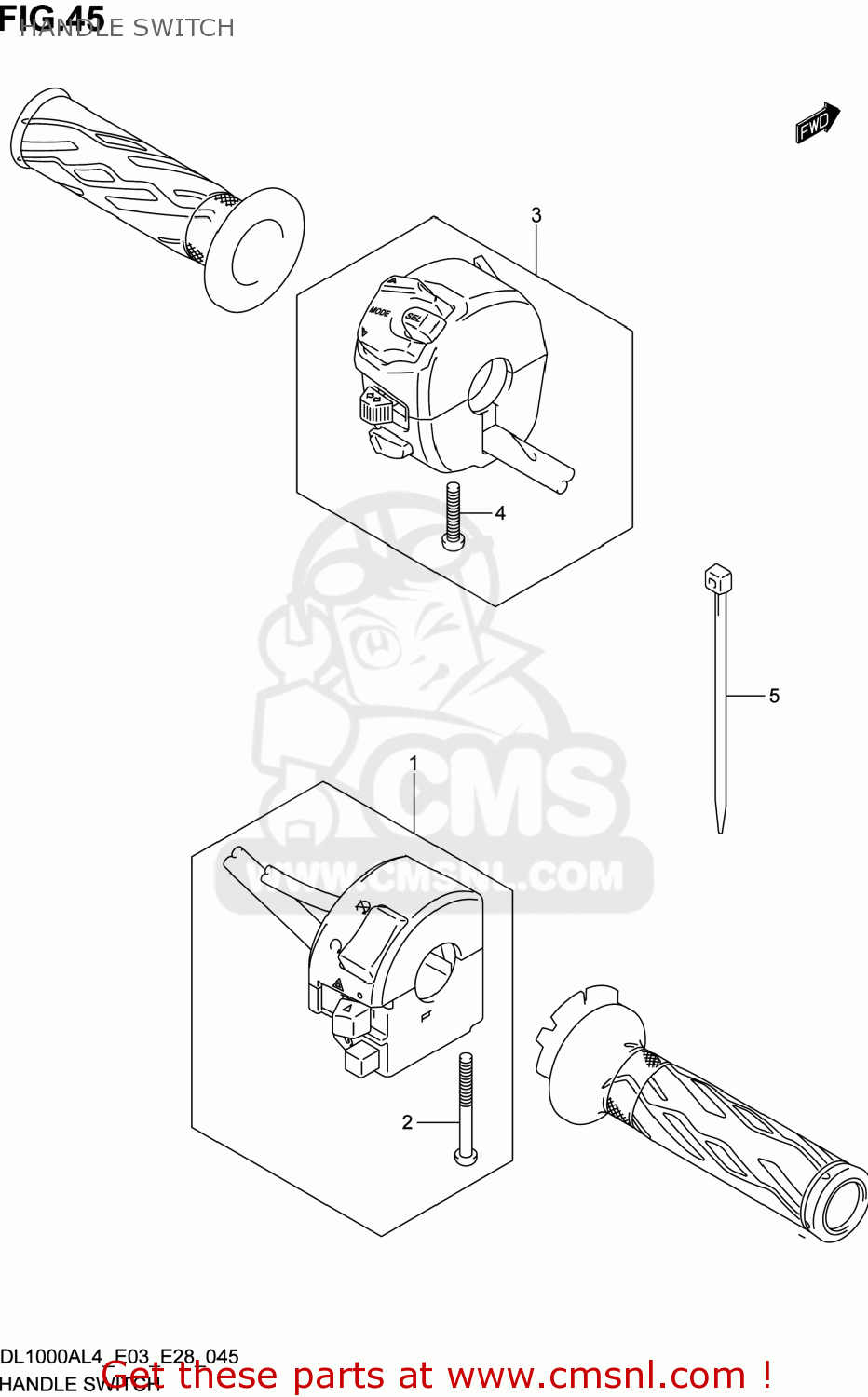

Handle switch diagram DL1000A VSTROM 2014 (L4) USA (E03)

HANDLE SWITCH DL1000A VSTROM 2014 (L4) USA (E03)

HANDLE SWITCH DL1000A VSTROM 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720031J00
ref: 1

SWITCH ASSY,HANDLE,R

€ 113.00

2

021120545B
ref: 2

SCREW

€ 4.00

3

3740031J00
ref: 3

SWITCH ASSY,HANDLE,L

€ 248.00

4

021120525B
ref: 4

SCREW

€ 1.50

5

0940714407
ref: 5

CLAMP(L:145)

€ 4.00
