Buy Suzuki DL Parts Online


FRAME COVER

DL1000A VSTROM 2014 (L4) USA (E03)

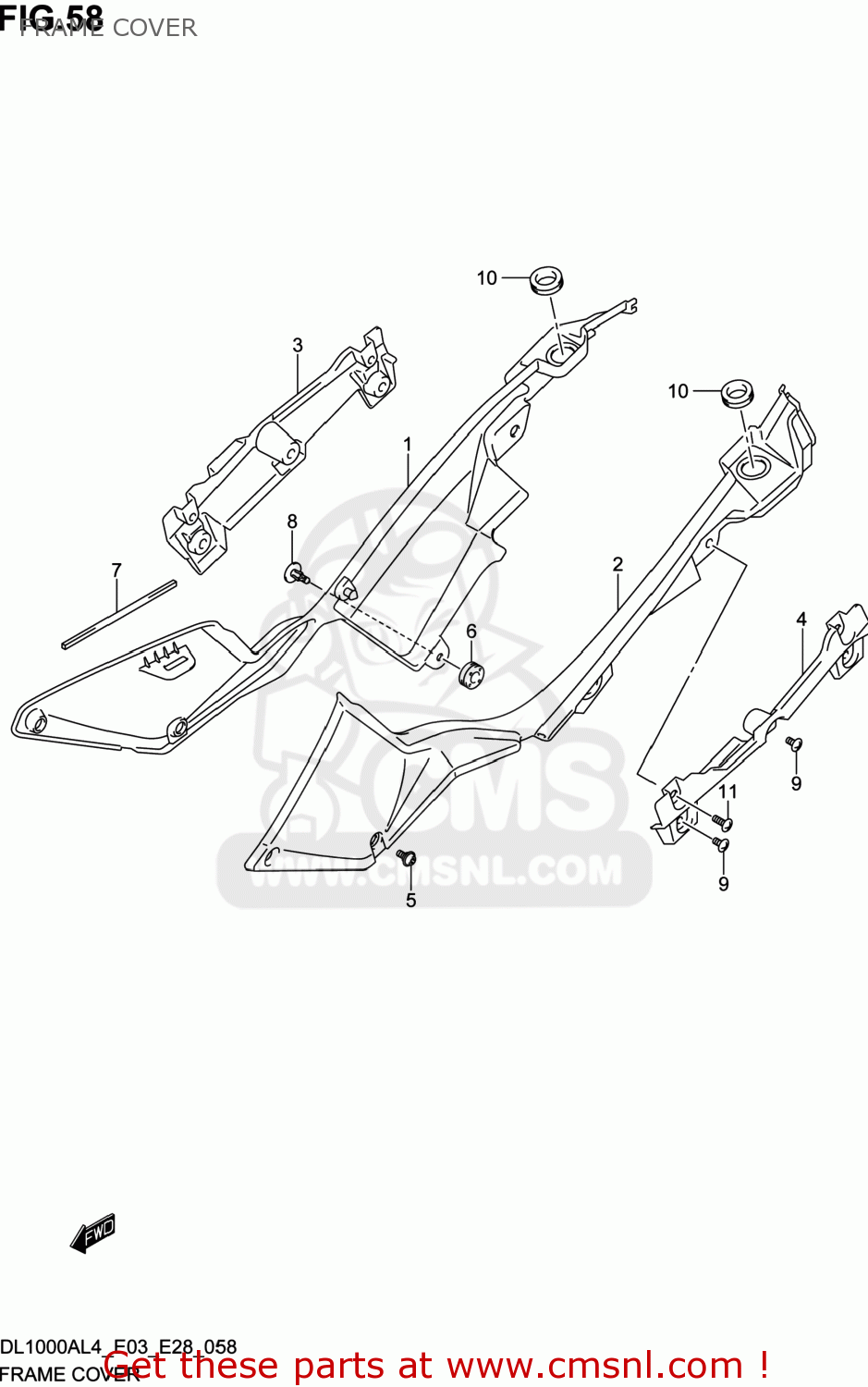

Frame cover diagram DL1000A VSTROM 2014 (L4) USA (E03)

FRAME COVER DL1000A VSTROM 2014 (L4) USA (E03)
FRAME COVER DL1000A VSTROM 2014 (L4) USA (E03)
FRAME COVER DL1000A VSTROM 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4711131J00
ref: 1
COVER,FRAME,R
4711131J00
€ 108.00
2
4721131J00
ref: 2
COVER,FRAME,L
4721131J00
€ 108.00
3
4741131J00
ref: 3
COVER,FRAME REAR,R
4741131J00
€ 5.50
4
4751131J00
ref: 4
COVER,FRAME REAR,L
4751131J00
€ 5.50
5
0913905074
ref: 5
BOLT(5X13)
0913905074
€ 3.00
6
0932008028
ref: 6
CUSHION
0932008028
€ 2.50
7
4712131J00
ref: 7
CUSHION,FRAME COVER
4712131J00
€ 1.50
8
9447935F00
ref: 8
CLIP
9447935F00
€ 3.50
9
4791331J00
ref: 9
SCREW
4791331J00
€ 1.50
10
0932020010
ref: 10
CUSHION
0932020010
€ 2.50
11
0913906120
ref: 11
SCREW(6X16)
0913906120
€ 3.00
up
