FRONT FENDER

DL1000A VSTROM 2014 (L4) USA (E03)

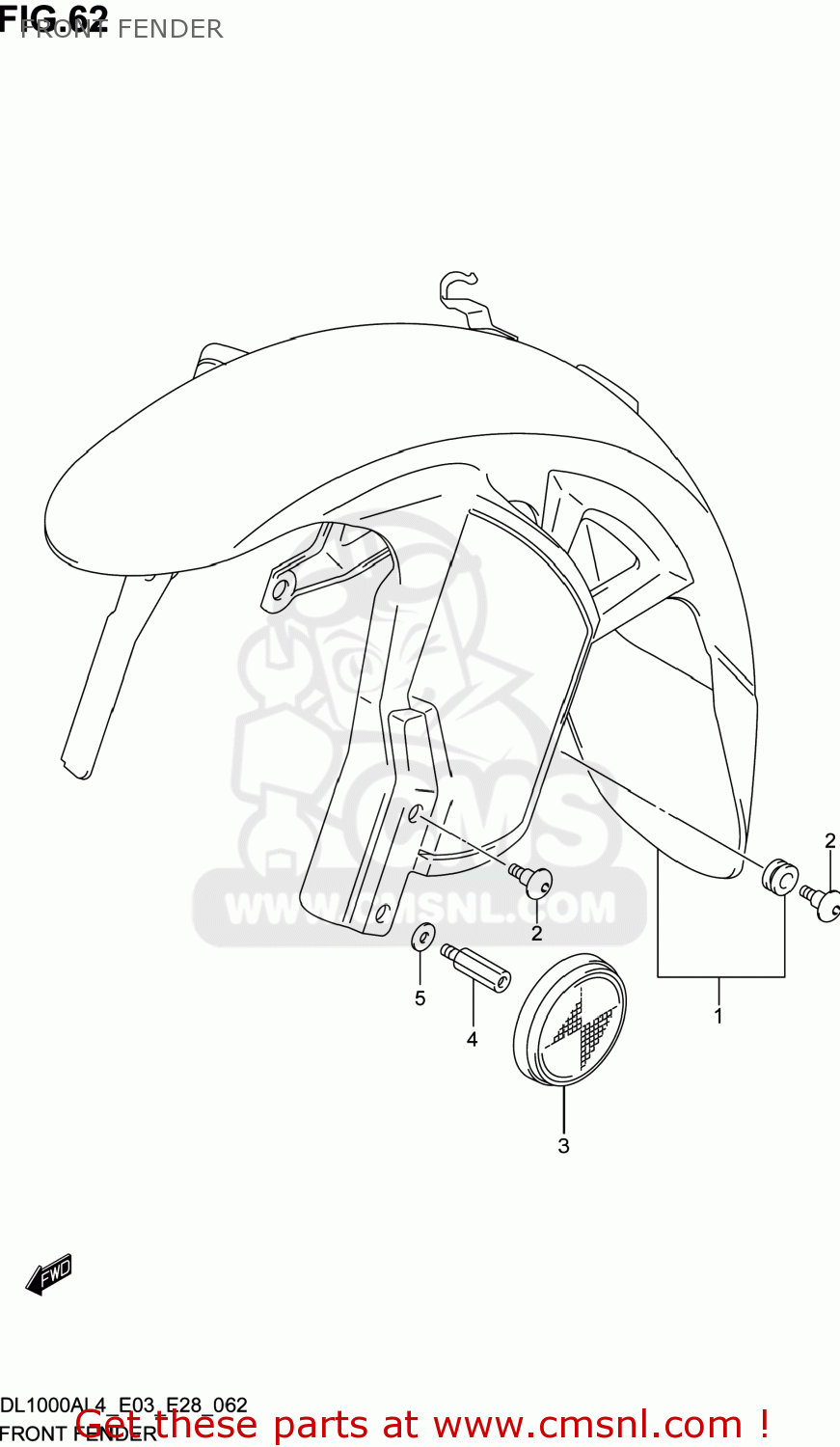

Front fender diagram DL1000A VSTROM 2014 (L4) USA (E03)

FRONT FENDER DL1000A VSTROM 2014 (L4) USA (E03)

FRONT FENDER DL1000A VSTROM 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5310031J00
ref: 1

FENDER ASSY,FRONT

€ 101.00

2

4791531J00
ref: 2

SCREW

€ 2.50

3

3595014A11
ref: 3

REFLEX REFLECTOR ASSY,FR SIDE

€ 11.00

4

0911906109
ref: 4

BOLT

€ 8.00

5

0916008043
ref: 5

WASHER(8.5X18X1)

€ 1.50
