HANDLE LEVER
DL1000A VSTROM 2014 (L4) USA (E03)

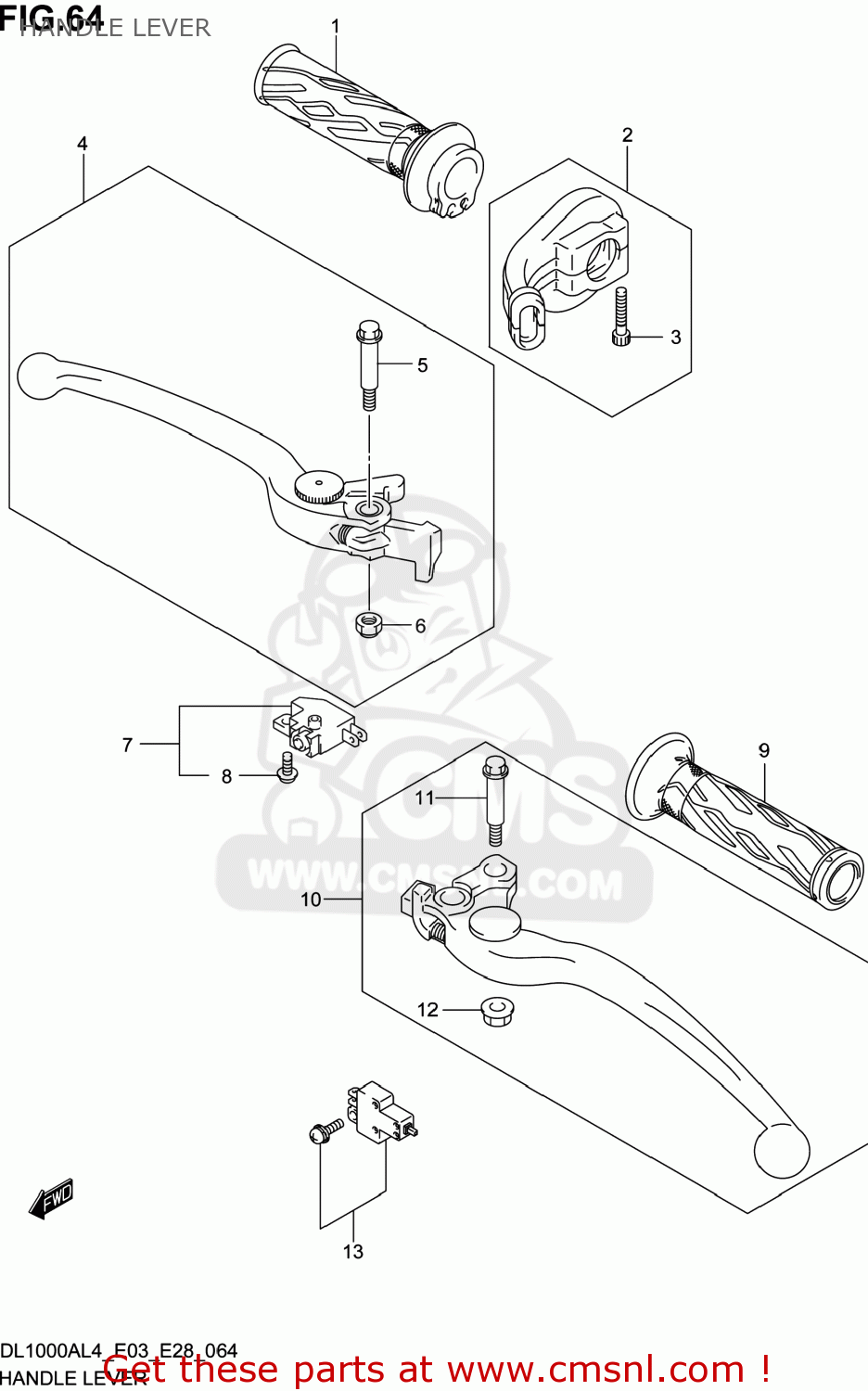

Handle lever diagram DL1000A VSTROM 2014 (L4) USA (E03)
HANDLE LEVER DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711021H01
ref: 1
GRIP,THROTTLE
€ 12.50
2
5710042F00
ref: 2
CASE ASSY,THROTTLE
€ 41.50
3
071300525B
ref: 3
BOLT
€ 2.00
4
5730010G32
ref: 4
LEVER ASSY,BRAKE
€ 59.00
5
5743117H02
ref: 5
BOLT,LEVER PIVOT
€ 6.00
6
083192106A
ref: 6
NUT
€ 2.00
7
5746014J01
ref: 7
SWITCH ASSY,FR BRAKE
€ 32.50
8
5746517C00
ref: 8
SCREW
€ 1.50
9
5721121H00
ref: 9
GRIP,L
€ 8.00
10
5750024F22
ref: 10
LEVER ASSY,CLUTCH
€ 58.50
11
5743117H02
ref: 11
BOLT,LEVER PIVOT
€ 6.00
12
083161606B
ref: 12
NUT
€ 2.00
13
5756002FA0
ref: 13
SWITCH ASSY,CLUTCH
€ 22.00
