CYLINDER HEAD (FRONT)
DL1000A VSTROM 2014 (L4) USA (E03)

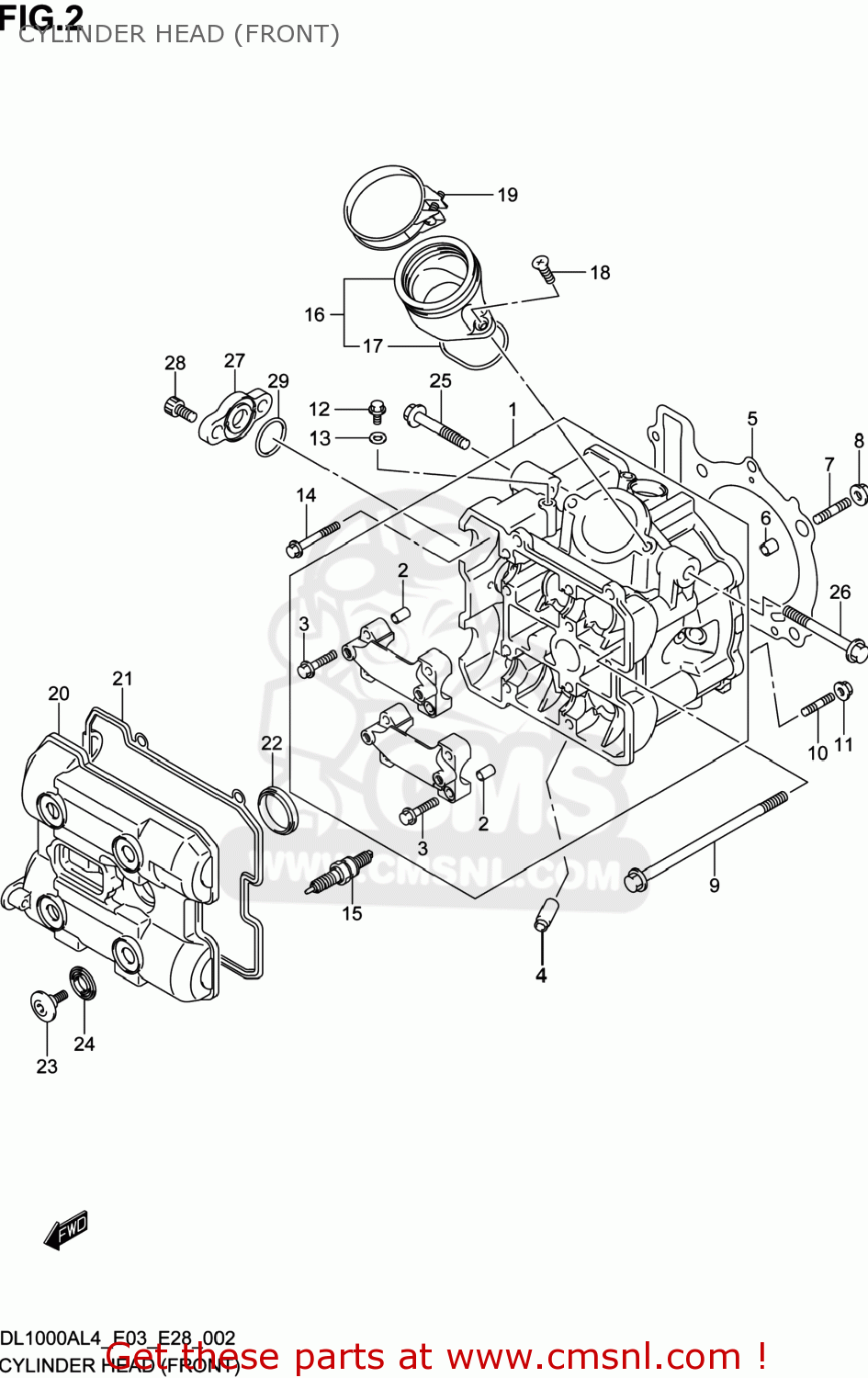

Cylinder head (front) diagram DL1000A VSTROM 2014 (L4) USA (E03)
CYLINDER HEAD (FRONT) DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110031J00
ref: 1
HEAD ASSY,CYLINDER FRONT
€ 1,174.00
2
0920608001
ref: 2
PIN(6.2X8X11)
€ 2.00
3
0910306266
ref: 3
BOLT(6X40)
€ 2.50
4
1111532E70
ref: 4
GUIDE,VALVE
€ 18.50
5
1114131J00
ref: 5
GASKET,CYLINDER HEAD (NAS)
€ 31.00
6
0421113189
ref: 6
PIN
€ 2.50
7
0910808143
ref: 7
BOLT,STUD
€ 3.00
8
083161008A
ref: 8
NUT
€ 2.50
9
1111733H00
ref: 9
BOLT,CYLINDER HEAD(L:165)
€ 9.00
10
0910806096
ref: 10
BOLT,STUD
€ 2.50
11
083161006A
ref: 11
NUT
€ 2.50
12
0910306222
ref: 12
BOLT(6X12)
€ 2.00
13
0916806023
ref: 13
GASKET(5.8X13X1.2) (NAS)
€ 2.00
14
0910306220
ref: 14
BOLT(6X60)
€ 2.00
15
0948200635
ref: 15
PLUG,SPARK(LMAR8BI-9)
€ 29.50
16
1310131J00
ref: 16
PIPE ASSY,INTAKE FRONT
€ 49.50
17
0928055005
ref: 17
O RING(D:2.4,ID:55.6)
€ 5.50
18
021220616B
ref: 18
SCREW
€ 2.00
19
1317040H00
ref: 19
CLAMP,INTAKE PIPE
€ 5.00
20
1117131J00
ref: 20
COVER,CYLINDER HEAD FRONT
€ 205.50
21
1117302F00
ref: 21
GASKET,CYL HEAD COVER NO.1 (NAS)
€ 29.00
22
1117817E00
ref: 22
GASKET,CYL HEAD COVER NO.2
€ 6.00
23
0910607009
ref: 23
BOLT(7X17.5)
€ 4.50
24
1119127E00
ref: 24
WASHER,CYL HEAD COVER
€ 4.50
25
015501050A
ref: 25
BOLT
€ 3.00
26
015501070A
ref: 26
BOLT
€ 2.50
27
1113431J00
ref: 27
COVER,CYL HEAD NO.2
€ 15.00
28
0910606075
ref: 28
BOLT(6X12)
€ 2.50
29
0928019005
ref: 29
O RING(D:2.4,ID:19)
€ 2.00
