CRANKCASE
DL1000A VSTROM 2014 (L4) USA (E03)

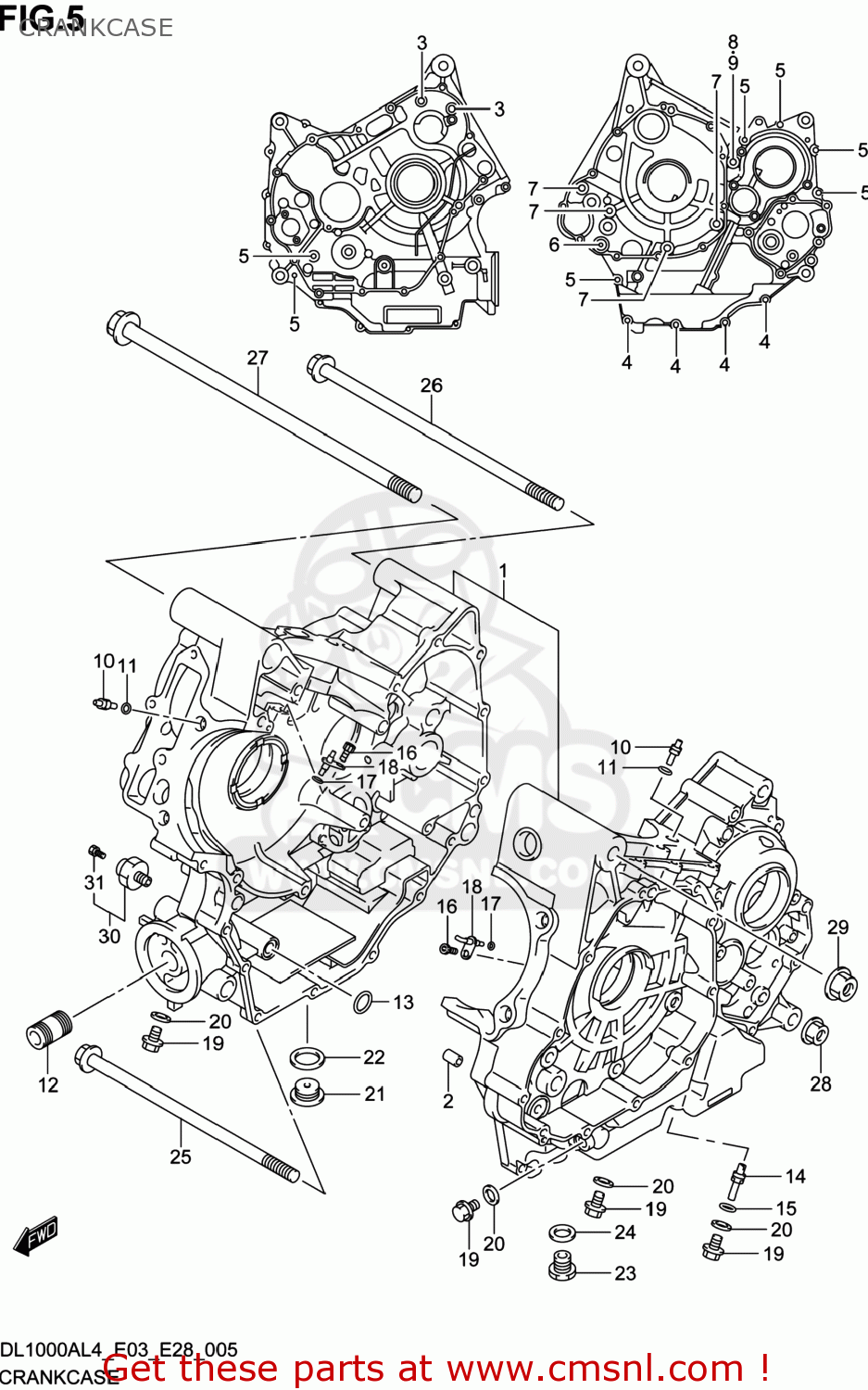

Crankcase diagram DL1000A VSTROM 2014 (L4) USA (E03)
CRANKCASE DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130606830
ref: 1
CRANKCASE SET
€ 2,077.50
2
1131933E00
ref: 2
PIN,CRANKCASE
€ 4.00
3
0910608142
ref: 3
BOLT(8X110)
€ 5.50
4
015470630A
ref: 4
BOLT
€ 2.50
5
015470670A
ref: 5
BOLT
€ 2.50
6
015470685A
ref: 6
BOLT
€ 2.00
7
071200890A
ref: 7
BOLT
€ 3.00
8
0910608136
ref: 8
BOLT(8X125)
€ 6.00
9
083220108A
ref: 9
WASHER
€ 2.00
10
0949328010
ref: 10
JET,AIR(14)
€ 10.50
11
0928004004
ref: 11
O RING(D:1.2,ID:4)
€ 2.00
12
1659106B01
ref: 12
UNION,OIL STAND
€ 6.00
13
0928012009
ref: 13
O RING(D:1.9,ID:12.6)
€ 2.50
14
0949320014
ref: 14
JET,OIL GALLERY
€ 8.00
15
0928004004
ref: 15
O RING(D:1.2,ID:4)
€ 2.00
16
0910606075
ref: 16
BOLT(6X12)
€ 2.50
17
0928005007
ref: 17
O RING(D:1.2,ID:4.7)
€ 2.00
18
1139006G10
ref: 18
JET,PISTON COOLING
€ 24.00
19
015500812A
ref: 19
BOLT
€ 2.50
20
0916808016
ref: 20
GASKET(8.2X14X1) (NAS)
€ 1.00
21
0924816012
ref: 21
PLUG,16X8
€ 4.50
22
0916816002
ref: 22
GASKET(16X22X2) (NAS)
€ 2.00
23
0924714036
ref: 23
PLUG(14X20)
€ 5.50
24
0916814002
ref: 24
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
25
0910310205
ref: 25
BOLT(10X225)
€ 9.50
26
0910310226
ref: 26
BOLT(10X265)
€ 12.00
27
0910312016
ref: 27
BOLT(12X300)
€ 14.50
28
083193110A
ref: 28
NUT
€ 3.00
29
0915912056
ref: 29
NUT
€ 7.00
30
3782033D10
ref: 30
SWITCH ASSY,OIL PRESSURE
€ 29.00
31
3782233D00
ref: 31
BOLT,OIL PRESSURE SWITCH
€ 3.00
