REAR COMBINATION LAMP
DL1000A VSTROM 2014 (L4) USA (E03)

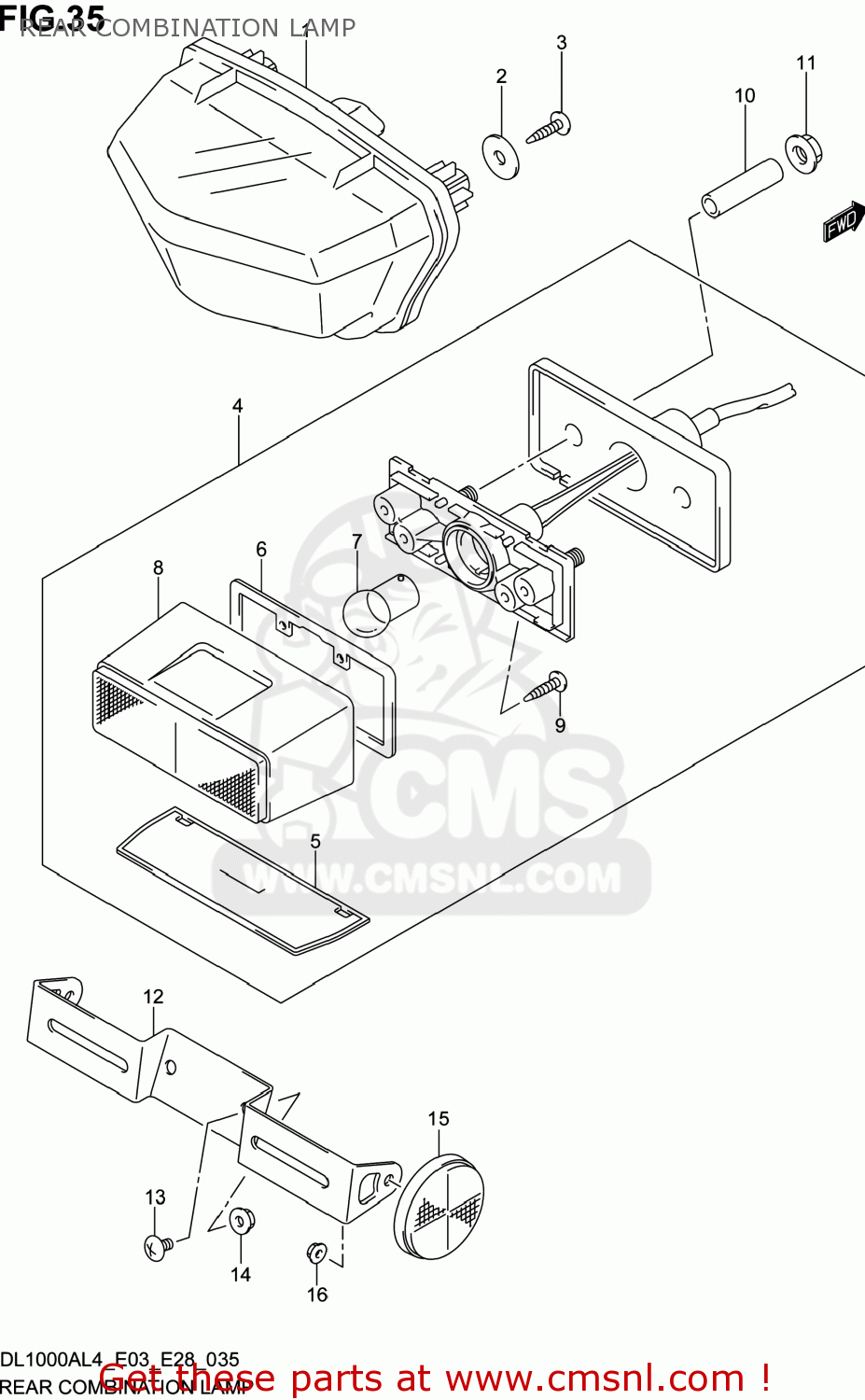

Rear combination lamp diagram DL1000A VSTROM 2014 (L4) USA (E03)
REAR COMBINATION LAMP DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571031J00
ref: 1
LAMP ASSY,REAR COMB
€ 152.00
2
0916005501
ref: 2
WASHER(5.5X20X1.2)
€ 2.00
3
035410516A
ref: 3
SCREW
€ 1.50
4
3591041GC0
ref: 4
LAMP ASSY,LICENSE
€ 0.00
5
3591241G01
ref: 5
LENS,LICENSE LAMP
€ 19.50
6
3591341G00
ref: 6
GASKET (NAS)
€ 19.00
7
0947112140
ref: 7
09471-12058
BULB(12V5W,BF150-40160A)
€ 4.00
8
3591741G00
ref: 8
COVER,LICENSE LAMP
€ 27.00
9
032110416A
ref: 9
SCREW
€ 1.50
10
0918006278
ref: 10
SPACER(6.5X9X33.3)
€ 3.50
11
0915906096
ref: 11
NUT
€ 2.00
12
3592714J30
ref: 12
BRACKET,LICENSE PLATE
€ 9.00
13
021420616A
ref: 13
SCREW
€ 2.50
14
0915906096
ref: 14
NUT
€ 2.00
15
3597014A20
ref: 15
REFLECTOR ASSY,RR SIDE
€ 11.00
16
083161005A
ref: 16
NUT
€ 2.50
