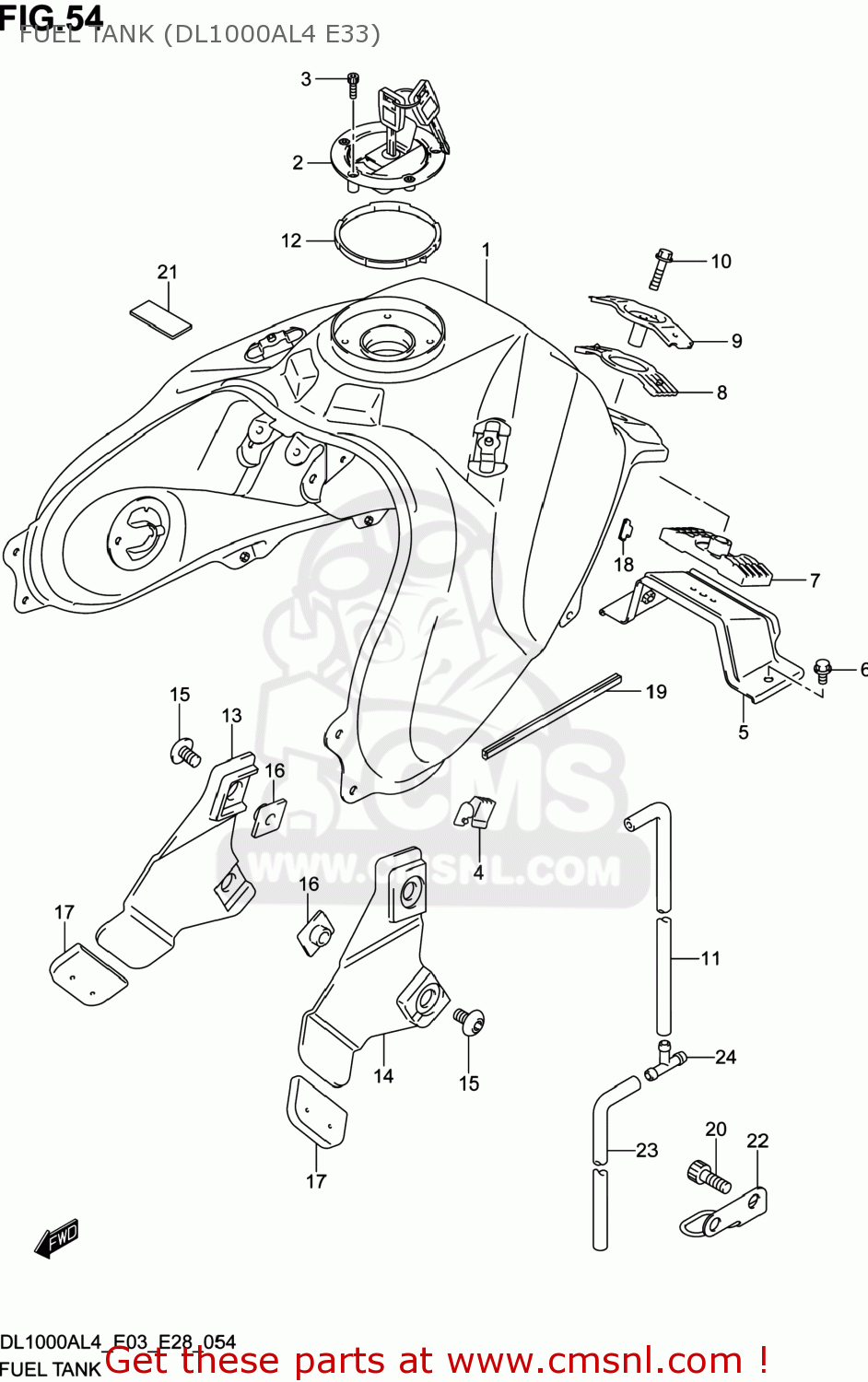

FUEL TANK (DL1000AL4 E33)

ref

part #

description

quantity

1-1

4410031J20YVB
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 0.00

1-2

4410031J20YWW
ref: 1-2

TANK ASSY,FUEL(WHITE)

€ 0.00

1-3

4410031J20YYG
ref: 1-3

TANK ASSY,FUEL(BLACK)

€ 0.00

1-4

4410031J20PRU
ref: 1-4

TANK ASSY,FUEL(KHAKI)

€ 0.00

2

4420016870
ref: 2

CAP SET,FUEL TANK

€ 148.50

3

4424411J00
ref: 3

BOLT,FUEL TANK FILLER CAP

€ 3.00

4

4454131J00
ref: 4

CUSHION,FUEL TANK SIDE

€ 9.00

5

4455031J00
ref: 5

BRACKET,FUEL TANK REAR

€ 11.50

6

015500816A
ref: 6

BOLT

€ 2.50

7

4454506G00
ref: 7

CUSHION,FUEL TANK RR LWR

€ 11.50

8

4454206G00
ref: 8

CUSHION,FUEL TANK RR UPR

€ 10.50

9

4453006G00
ref: 9

BRACKET,FUEL TANK RR UP

€ 12.00

10

015500835A
ref: 10

BOLT

€ 3.50

11

4442331J00
ref: 11

HOSE,FUEL TANK WATER DRAIN

€ 13.50

12

6824131J00
ref: 12

MOLDING,FUEL TANK COVER

€ 4.50

13

4417931J00
ref: 13

BRACKET,FUEL TANK COVER SIDE,R

€ 7.00

13

4417931J00
ref: 13

BRACKET,FUEL TANK COVER SIDE,R

€ 7.00

14

4418931J00
ref: 14

BRACKET,FUEL TANK COVER SIDE,L

€ 7.00

14

4418931J00
ref: 14

BRACKET,FUEL TANK COVER SIDE,L

€ 7.00

15

0913906181
ref: 15

SCREW(6X10)

€ 3.00

16

4452347H00
ref: 16

NUT(M6)

€ 5.50

17

4454231J00
ref: 17

CUSHION,FUEL TANK COVER BRKT

€ 3.00

18

4427621H00
ref: 18

CUSHION,FUEL TANK COVER

€ 6.00

19

4455224B00
ref: 19

MOLDING,FUEL TANK RR

€ 3.50

20

071301016B
ref: 20

BOLT

€ 2.00

21

4454431J00
ref: 21

CUSHION,FUEL TANK

€ 3.50

22

4448031J00
ref: 22

GUIDE,DRAIN HOSE

€ 7.50

23

4442331J10
ref: 23

HOSE,FUEL TANK DRAIN NO.2

€ 11.00

24

0936708005
ref: 24

3 WAY

€ 4.00
