FRONT CALIPER
DL1000A VSTROM 2014 (L4) USA (E03)

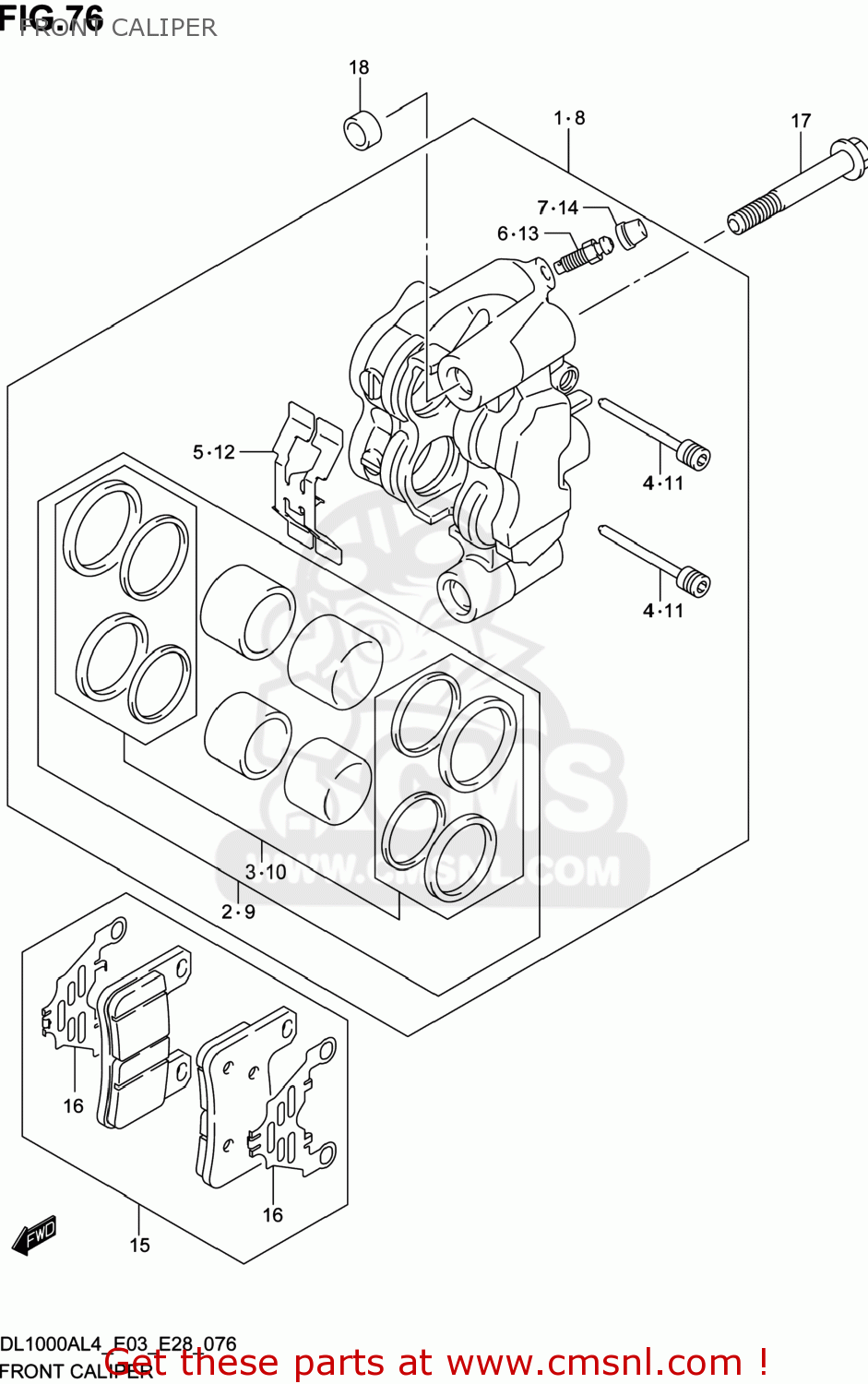

Front caliper diagram DL1000A VSTROM 2014 (L4) USA (E03)
FRONT CALIPER DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5910031J00999
ref: 1
CALIPER ASSY,FR,R
€ 289.50
2
5910031810
ref: 2
PISTON SET
€ 66.00
3
5910147810
ref: 3
SEAL SET,PISTON
€ 57.50
4
5914141G10
ref: 4
PIN
€ 27.00
5
5915129G00
ref: 5
SPRING,PAD
€ 10.50
6
5912118410
ref: 6
BLEEDER
€ 8.00
7
5515666310
ref: 7
CAP,BLEEDER PLUG
€ 6.00
8
5930031J00999
ref: 8
CALIPWE ASSY,FR,L
€ 374.00
9
5910031810
ref: 9
PISTON SET
€ 66.00
10
5910147810
ref: 10
SEAL SET,PISTON
€ 57.50
11
5914141G10
ref: 11
PIN
€ 27.00
12
5915129G00
ref: 12
SPRING,PAD
€ 10.50
13
5912118410
ref: 13
BLEEDER
€ 8.00
14
5515666310
ref: 14
CAP,BLEEDER PLUG
€ 6.00
15
5910029860
ref: 15
PAD SET (NAS)
€ 62.00
16
5917147H00
ref: 16
SHIM
€ 14.00
17
0910310392
ref: 17
BOLT(10X70)
€ 4.50
18
5915141G00
ref: 18
PIN,CALIPER
€ 9.50
