FRONT WHEEL
DL1000A VSTROM 2014 (L4) USA (E03)

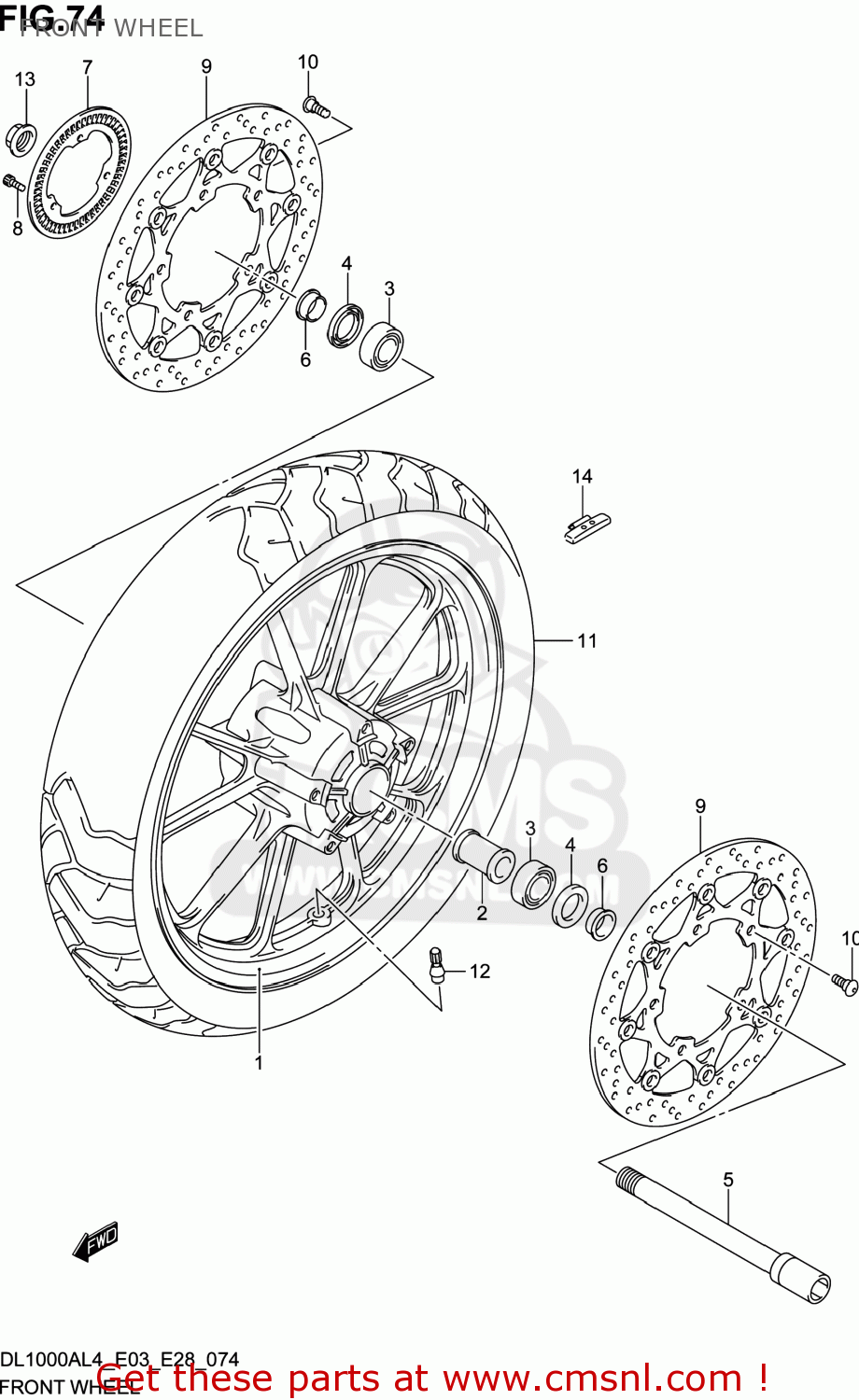

Front wheel diagram DL1000A VSTROM 2014 (L4) USA (E03)
FRONT WHEEL DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411131J00019
ref: 1
WHEEL,FRONT(19M/CXMT2.50)
€ 488.50
1
5411131J00019
ref: 1
WHEEL,FRONT(19M/CXMT2.50)
€ 488.50
2
5473133E20
ref: 2
SPACER,FR HUB BEARING
€ 20.50
3
0926225167
ref: 3
BEARING(25X52X15)
€ 27.50
4
0928532004
ref: 4
SEAL,OIL(32X52X7)
€ 8.00
5
5471131J00
ref: 5
AXLE,FRONT
€ 78.50
6
5475141G10
ref: 6
SPACER,FR AXLE,R
€ 13.00
7
5416227G00
ref: 7
RING,SPEED SENSOR FR(50T)
€ 51.00
8
071300512A
ref: 8
BOLT
€ 2.50
9
5921031J00
ref: 9
DISC,FRONT BRAKE
€ 221.00
10
0910608160
ref: 10
BOLT(8X21)
€ 3.50
11
5511031J00
ref: 11
TIRE,FRONT
€ 136.50
11
5511031J00
ref: 11
TIRE,FRONT
€ 136.50
12
4313024A00
ref: 12
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
13
5471247H00
ref: 13
NUT,FR AXLE
€ 22.00
14-1
5541122H00
ref: 14-1
BALANCER,WHEEL(10G)
€ 4.50
14-2
5541222H00
ref: 14-2
BALANCER,WHEEL(20G)
€ 5.50
14-3
5541322H00
ref: 14-3
BALANCER,WHEEL(30G)
€ 6.00
