CAM CHAIN
DL1000A VSTROM 2014 (L4) USA (E03)

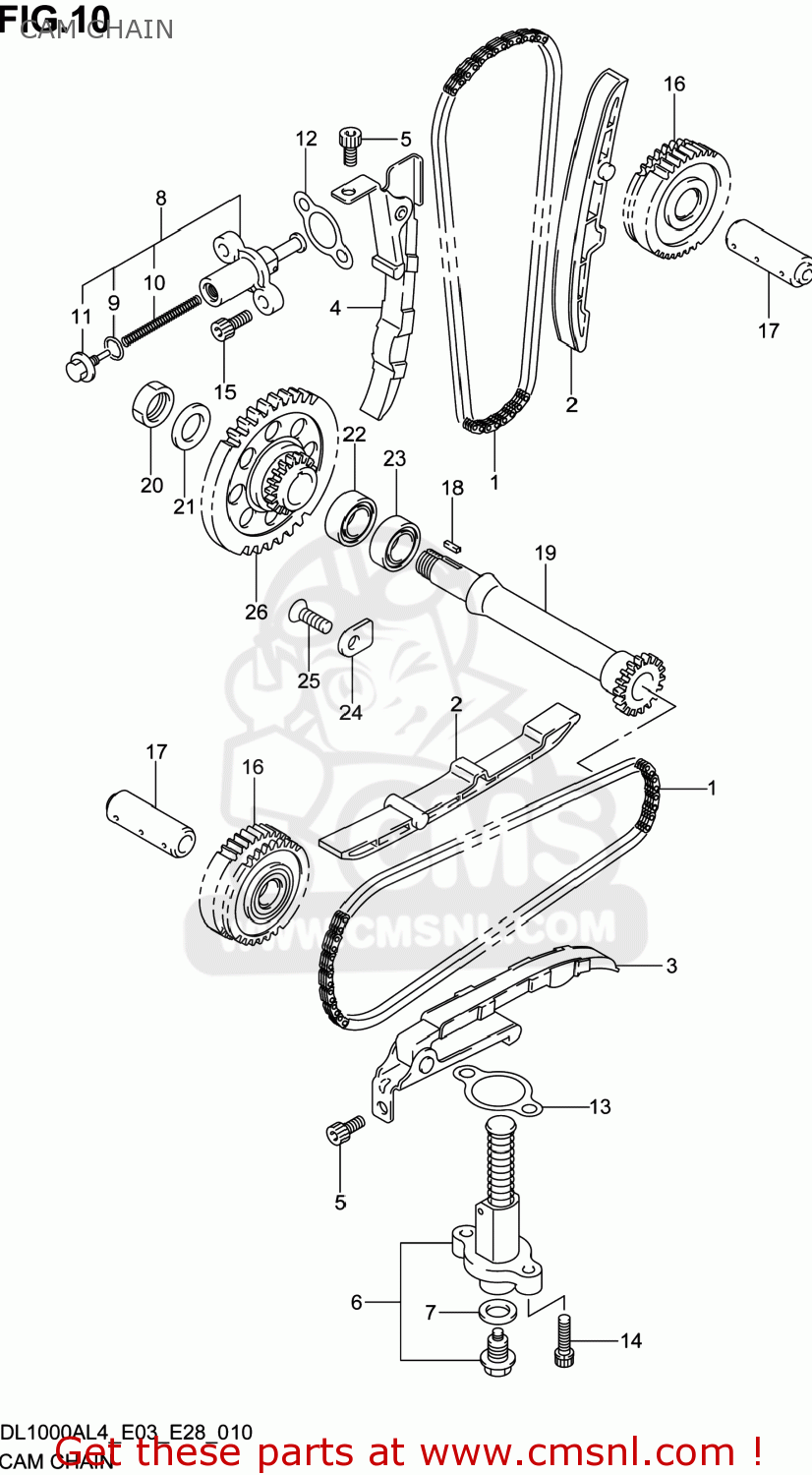

Cam chain diagram DL1000A VSTROM 2014 (L4) USA (E03)
CAM CHAIN DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276023F20
ref: 1
CHAIN,CAMSHAFT DRIVE
€ 46.50
2
1277106G00
ref: 2
GUIDE,CAM CHAIN
€ 15.00
3
1281006G00
ref: 3
TENSIONER,CAM CHAIN FR
€ 41.00
4
1281506G00
ref: 4
TENSIONER,CAM CHAIN RR
€ 41.00
5
071200612A
ref: 5
BOLT
€ 3.50
6
1283205A10
ref: 6
ADJUSTER ASSY,TENSIONER FR
€ 86.00
7
0916812018
ref: 7
GASKET(12X21X2) (NAS)
€ 2.00
8
1283030A01
ref: 8
ADJUSTER ASSY,TENSIONER
€ 54.50
9
1283202A00
ref: 9
O RING
€ 2.00
10
1283330A01
ref: 10
SPRING
€ 1.50
11
1283402A00
ref: 11
PLUG,ADJUSTER
€ 8.00
12
1283719B10
ref: 12
GASKET,TENSIONER ADJUSTER (NAS)
€ 3.00
13
1283724A10
ref: 13
GASKET,TENSIONER ADJUSTER (NAS)
€ 3.50
14
071300625A
ref: 14
BOLT
€ 2.50
15
071300620A
ref: 15
BOLT
€ 3.00
16
1275031J00
ref: 16
GEAR,CAM CHAIN IDLER NO.2
€ 129.00
17
1275531J00
ref: 17
SHAFT,IDLER NO.2
€ 24.50
18
0942104004
ref: 18
KEY
€ 3.50
19
1271606G00
ref: 19
SHAFT,IDLER
€ 99.00
20
0914016001
ref: 20
NUT
€ 4.50
21
0918116212
ref: 21
SHIM(16X26X1.5)
€ 2.00
22
0811263030
ref: 22
BEARING
€ 17.50
23
0926225006
ref: 23
BEARING(25X47X8)
€ 24.00
24
2474120A00
ref: 24
RETAINER,COUNTER BEARING,R
€ 2.00
25
0912606011
ref: 25
SCREW(6X12)
€ 2.00
26
1273106G01
ref: 26
SPROCKET,IDLER NO.1
€ 77.50
