REAR CUSHION LEVER
DL1000A VSTROM 2014 (L4) USA (E03)

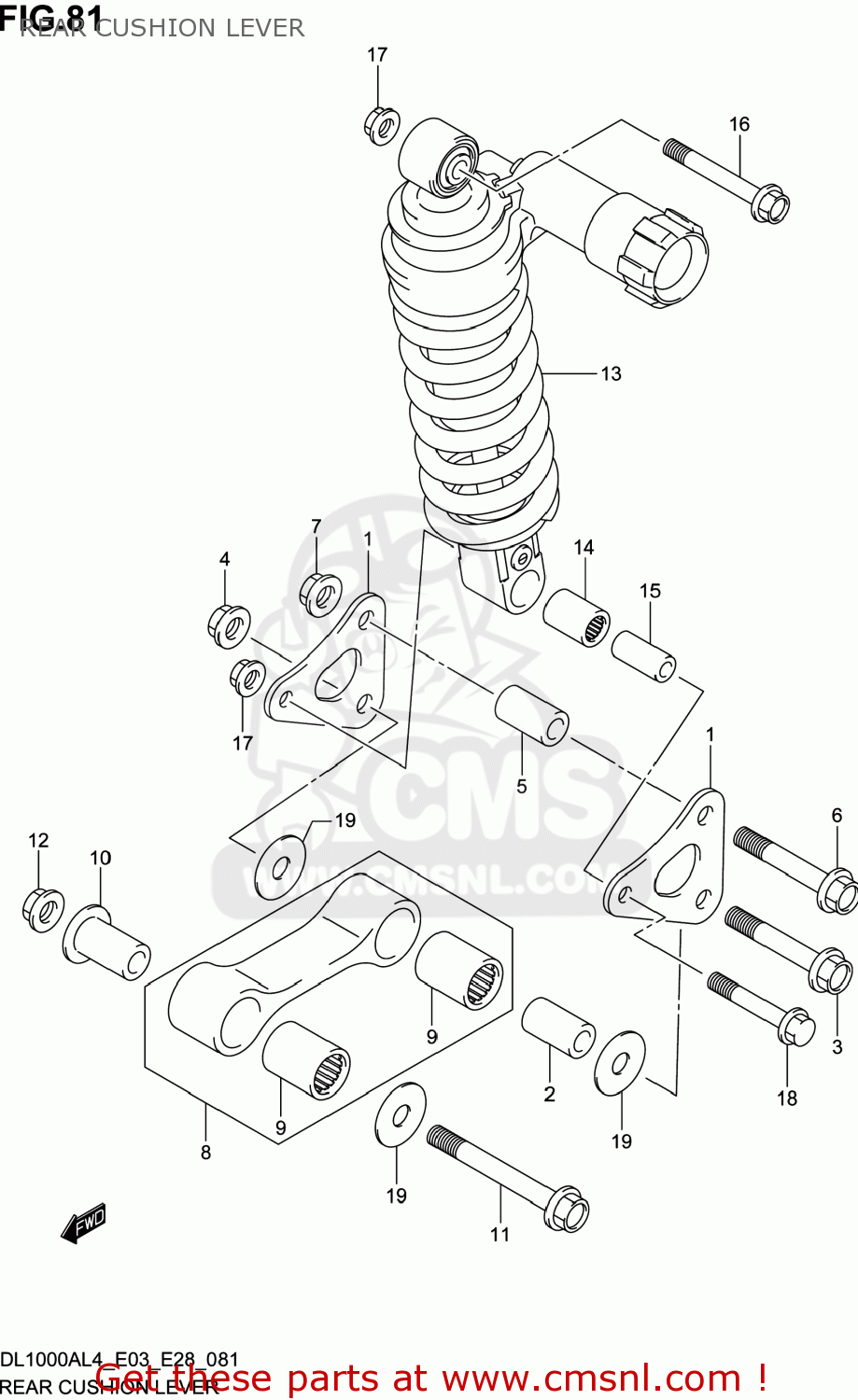

Rear cushion lever diagram DL1000A VSTROM 2014 (L4) USA (E03)
REAR CUSHION LEVER DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6261131J00
ref: 1
LEVER,REAR CUSHION
€ 16.50
2
6231727C10
ref: 2
SPACER,RR CUSHION LEVER FR
€ 9.00
3
6266842A02
ref: 3
BOLT,CUSHION LEVER FR
€ 7.00
4
0915912056
ref: 4
NUT
€ 7.00
5
6231744B00
ref: 5
SPACER,RR CUSHION LEVER FR
€ 14.00
6
6266842A02
ref: 6
BOLT,CUSHION LEVER FR
€ 7.00
7
0915912056
ref: 7
NUT
€ 7.00
8
6264131J00
ref: 8
ROD,RR CUSHION
€ 93.50
9
0926320074
ref: 9
BEARING(20X27X32)
€ 25.00
10
6264747H00
ref: 10
SPACER,RR CUSHION ROD FR
€ 24.00
11
6265837F10
ref: 11
BOLT,RR CUSHION LEVER UPR
€ 5.00
12
0915912056
ref: 12
NUT
€ 7.00
13
6210031JB0YKS
ref: 13
ABSORBER ASSY,REAR SHOCK(RED)
€ 704.50
13
6210031JB0YKS
ref: 13
ABSORBER ASSY,REAR SHOCK(RED)
€ 704.50
14
0926317046
ref: 14
BEARING(17X24X32)
€ 19.00
15
6231747H00
ref: 15
SPACER,RR SHOCK ABS LWR
€ 13.00
16
0910310033
ref: 16
BOLT(10X70)
€ 5.00
17
0915910115
ref: 17
NUT
€ 4.00
18
0910310428
ref: 18
BOLT(10X58)
€ 3.50
19
0916012037
ref: 19
WASHER(12X34X1)
€ 4.00
