LABEL (DL1000AL4 E03)
DL1000A VSTROM 2014 (L4) USA (E03)

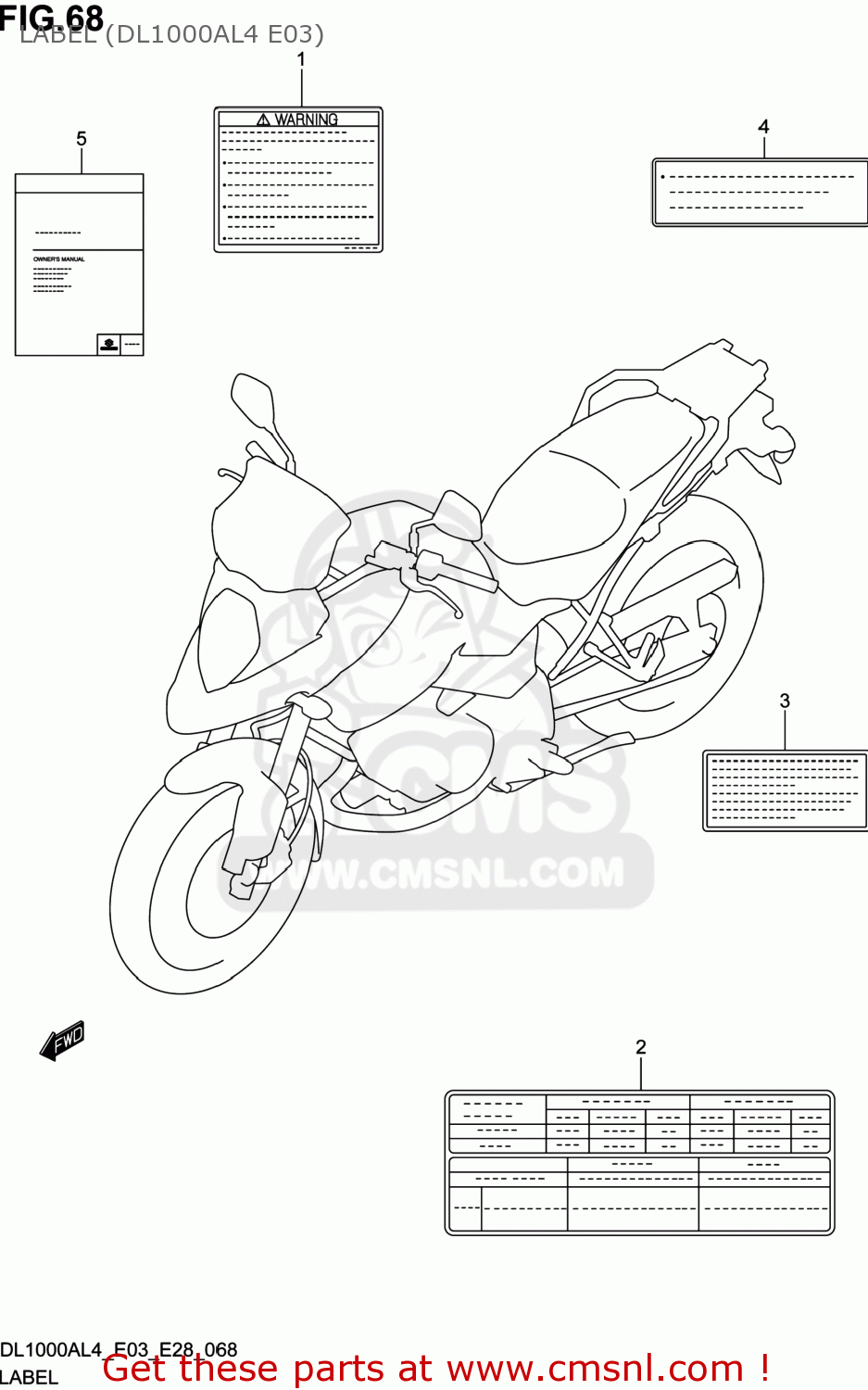

Label (dl1000al4 e03) diagram DL1000A VSTROM 2014 (L4) USA (E03)
LABEL (DL1000AL4 E03) DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6831929F00
ref: 1
LABEL,GENERAL WARNING
€ 6.00
2
6833231J10
ref: 2
LABEL,TIRE INFORMATION
€ 7.00
3
6835326E02
ref: 3
LABEL,MANUAL NOTICE
€ 3.50
4
1880302F01
ref: 4
LABEL,FUEL INFORMATION
€ 6.00
5
9901131J5003A
ref: 5
MANUAL,OWNER'S
€ 16.00
