FRONT MASTER CYLINDER

DL1000A VSTROM 2014 (L4) USA (E03)

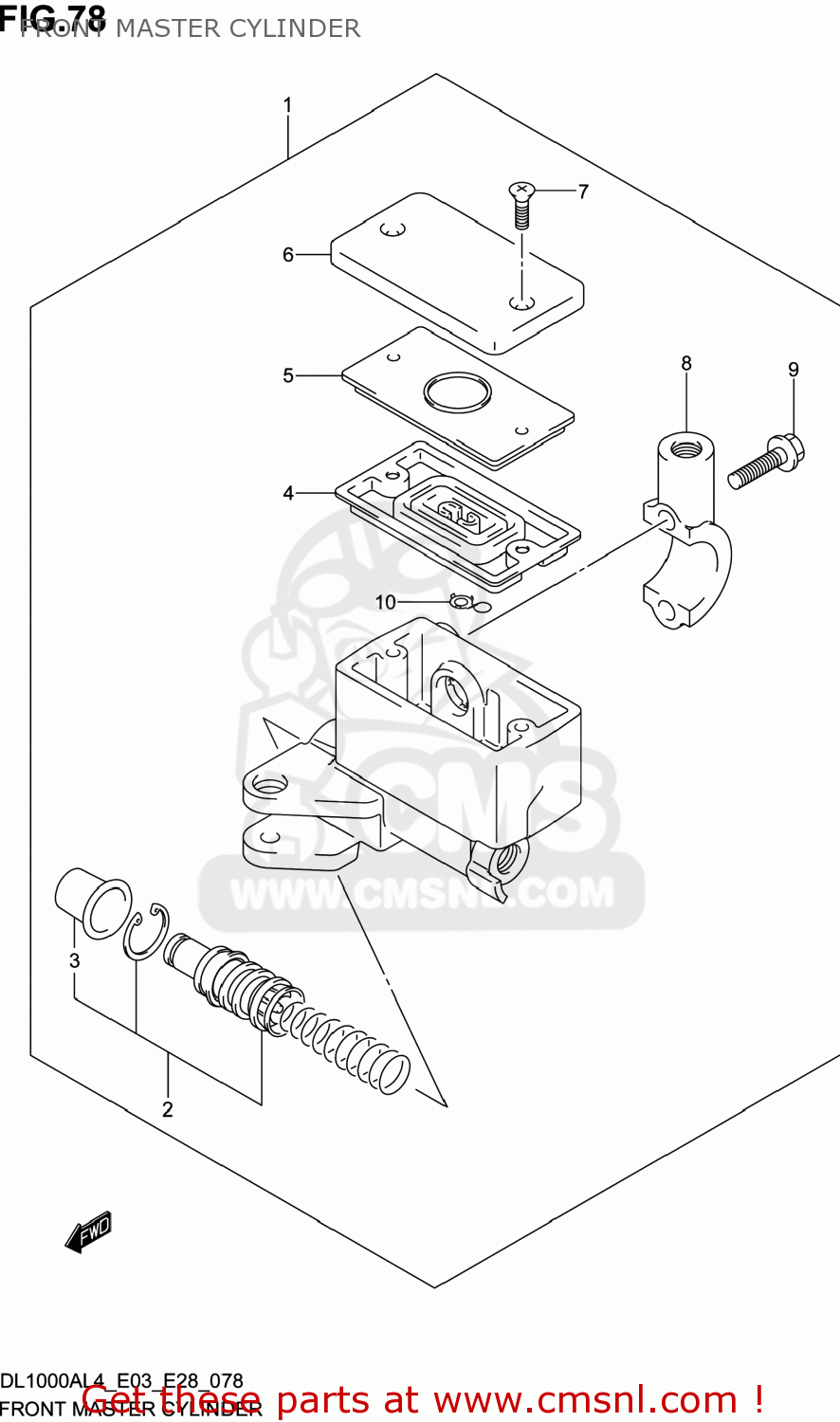

Front master cylinder diagram DL1000A VSTROM 2014 (L4) USA (E03)

FRONT MASTER CYLINDER DL1000A VSTROM 2014 (L4) USA (E03)
FRONT MASTER CYLINDER DL1000A VSTROM 2014 (L4) USA (E03)
FRONT MASTER CYLINDER DL1000A VSTROM 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5960010G30
ref: 1
CYLINDER ASSY,FR MASTER
5960010G30
€ 190.00
2
5960045870
ref: 2
PISTON & CUP SET
5960045870
€ 34.00
3
5966644300
ref: 3
BOOT
5966644300
€ 6.00
4
5966749460
ref: 4
5966749460
5
5966841C00
ref: 5
PLATE,DIAPHRAGM
5966841C00
€ 8.00
6
5966910G00
ref: 6
CAP
5966910G00
€ 19.00
7
6968949300
ref: 7
SCREW
6968949300
€ 1.50
8
5967132F00
ref: 8
HOLDER
5967132F00
€ 17.00
9
5967502FA0
ref: 9
BOLT(6X22)
5967502FA0
€ 3.00
10
5966432F00
ref: 10
PROTECTOR
5966432F00
€ 7.50
