DL1000A VSTROM 2014 (L4) USA (E03)

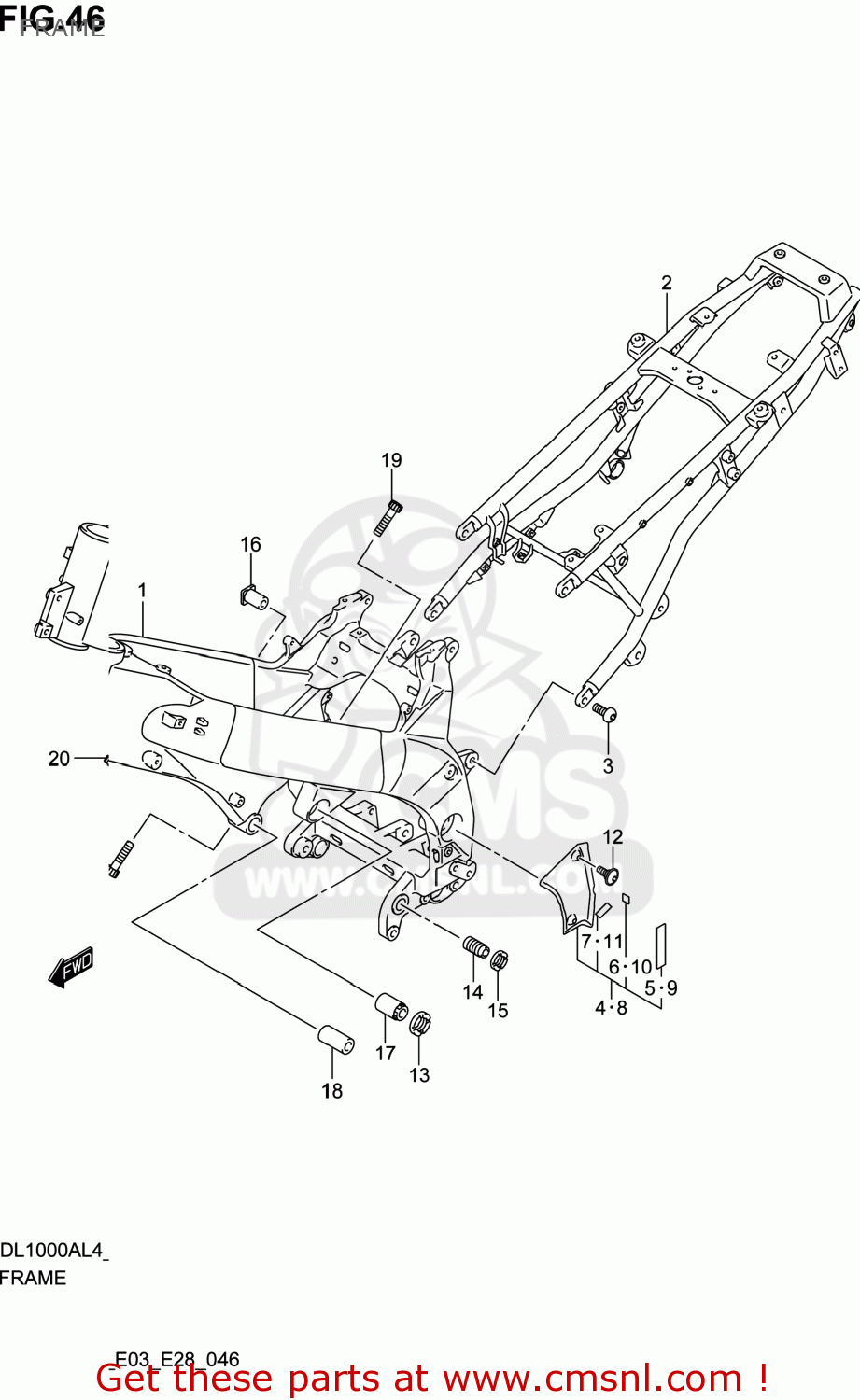

Frame diagram DL1000A VSTROM 2014 (L4) USA (E03)
FRAME DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110031J00YAP
ref: 1
FRAME(BLACK)
€ 2,486.50
2
4120031J00YD8
ref: 2
RAIL,SEAT(SILVER)
€ 650.00
3
0913910003
ref: 3
BOLT(10X25)
€ 6.00
4
4358031J00
ref: 4
COVER,PIVOT,R
€ 12.00
5
3365238A10
ref: 5
33652-07D00
PROTECTOR(20X90)X2
€ 4.50
6
6311537H00
ref: 6
CUSHION,RR COVER NO.2
€ 2.00
7
9442921E00
ref: 7
CUSHION,PIVOT COVER NO.2
€ 2.00
8
4359031J00
ref: 8
COVER,PIVOT,L
€ 12.00
9
3365238A10
ref: 9
33652-07D00
PROTECTOR(20X90)X2
€ 4.50
10
6311537H00
ref: 10
CUSHION,RR COVER NO.2
€ 2.00
11
9442921E00
ref: 11
CUSHION,PIVOT COVER NO.2
€ 2.00
12
0913905074
ref: 12
BOLT(5X13)
€ 3.00
13
4192219F20
ref: 13
NUT,CRANK CASE ADJUST CTR
€ 12.00
14
4192116G00
ref: 14
BOLT,CASE LWR & RR HEAD ADJ
€ 10.50
15
4192233E20
ref: 15
NUT,CRANK CASE ADJUST LWR
€ 10.50
16
4194119F01
ref: 16
SPACER,MOUNTING RR UPR,R
€ 25.00
17
4192147H00
ref: 17
BOLT,CRANK CASE ADJUST
€ 21.00
18
4194202F00
ref: 18
SPACER,ENG HEAD MTG RR,L
€ 17.00
19
071300840B
ref: 19
BOLT
€ 3.00
20
071300840B
ref: 20
BOLT
€ 3.00
