Buy Suzuki DL Parts Online


SPEEDOMETER (DL1000AL4 E33)

DL1000A VSTROM 2014 (L4) USA (E03)

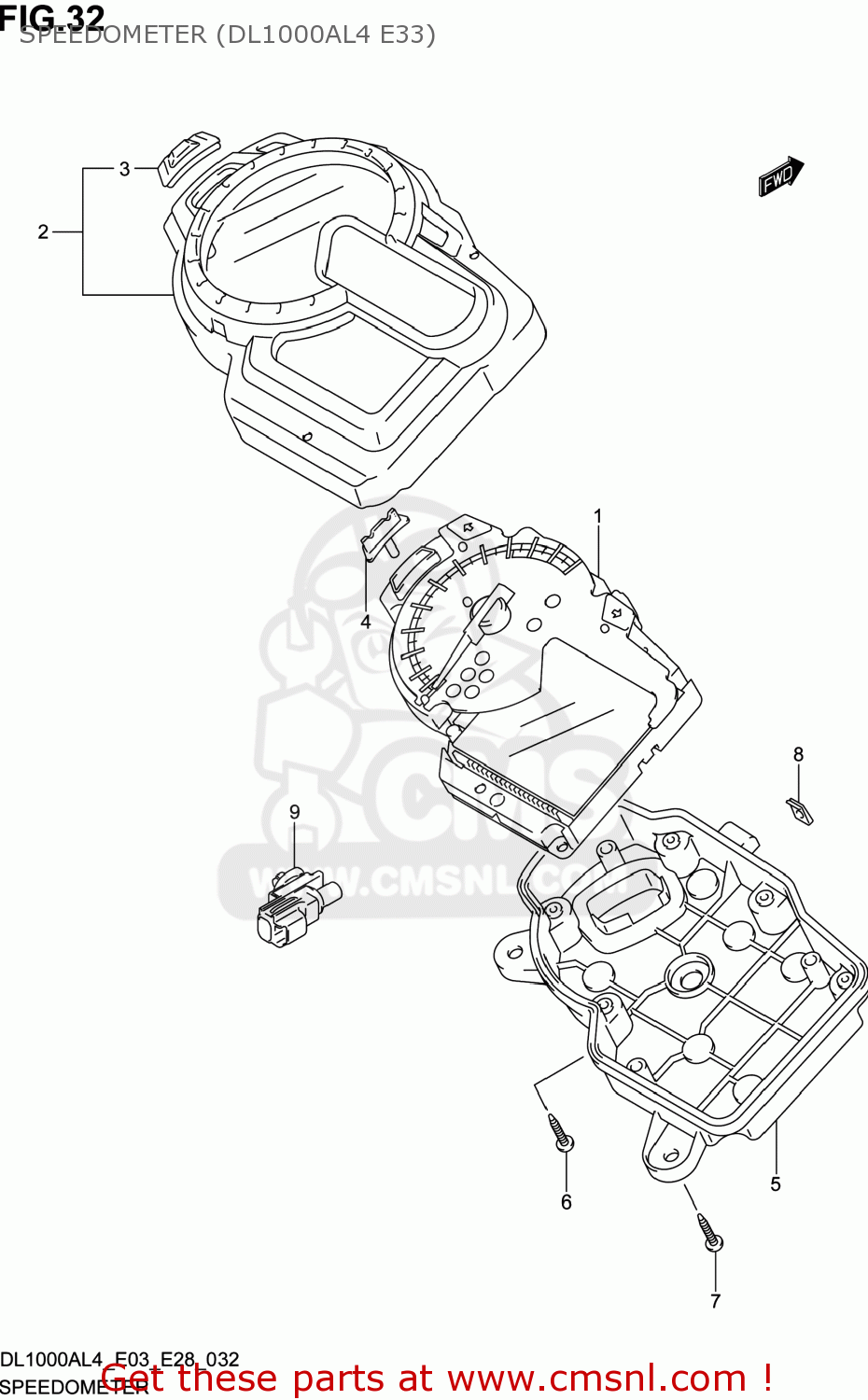

Speedometer (dl1000al4 e33) diagram DL1000A VSTROM 2014 (L4) USA (E03)

SPEEDOMETER (DL1000AL4 E33) DL1000A VSTROM 2014 (L4) USA (E03)
SPEEDOMETER (DL1000AL4 E33) DL1000A VSTROM 2014 (L4) USA (E03)
SPEEDOMETER (DL1000AL4 E33) DL1000A VSTROM 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3412031J10
ref: 1
SPEEDOMETER
€ 0.00
2
3415031J00
ref: 2
CASE ASSY
3415031J00
€ 196.00
3
3412631J00
ref: 3
RUBBER SWITCH
3412631J00
€ 20.50
4
3412431J00
ref: 4
KNOB
3412431J00
€ 9.50
5
3415231J00
ref: 5
CASE LOWER
3415231J00
€ 72.00
6
3418329F00
ref: 6
SCREW(3X12)
€ 3.00
7
035410516A
ref: 7
SCREW
035410516A
€ 1.50
8
0914805052
ref: 8
NUT
0914805052
€ 3.50
9
9564358J00
ref: 9
SENSOR,AIR TEMP
€ 32.50
